UTENSIL WASHER

GS 630

Compact. Powerful. Simple operation. The smallest utensil washer in the world. Small but mighty.

Winterhalter GS 630 utensil washer

THE SMALL MODEL FOR SERIOUS SOILING.

Small kitchens. Cramped counters. Rooms with limited space. An option wherever there seems to be no space for washing: the GS 630 from Winterhalter. This is where the smallest utensil washer in the world comes into its own. It takes up hardly any space and, as an under-counter version, it will also fit under a work surface. It’s easy to use, and washes quickly, economically and efficiently. In bakeries and butcher’s shops. In the catering industry and chain restaurants. And it packs quite a punch: with its high water pressure, it cleans away even stubborn dirt, leaving your utensils hygienically clean. No matter what comes its way. Baking sheets, GN containers, Euronorm boxes. Trays and filters. As well as dishes, glasses and cutlery. The GS 630 guarantees perfect wash results.

SPEAK DIRECTLY TO OUR EXPERTS!
We want you to be absolutely confident in your decision to choose Winterhalter. Work with one of our experts to find out whether the GS 630 is the right utensilwashing solution for you. Simply call or email us.

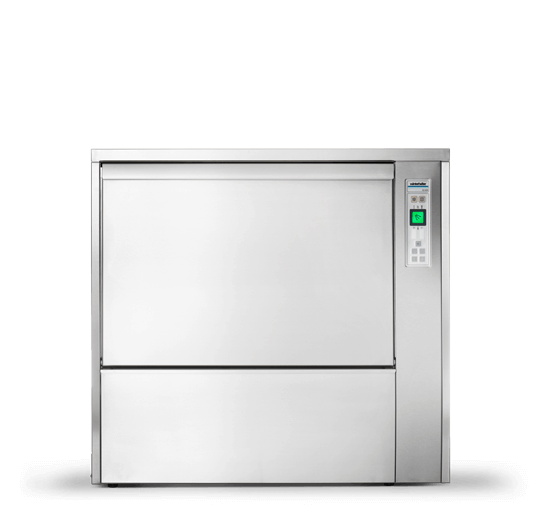

PRODUCT BENEFITS
Winterhalter GS 630 utensil washer
PERFECT WASH RESULTS

An extremely efficient Dishwashing system. With reversing wash arms. The GS 630 guarantees first-class cleaning. Even if your wash items are very dirty.

HIGH QUALITY

Excellent materials. Careful finishing. The GS 630 meets Winterhalter’s high quality standards. And it is completely reliable and durable.

SIMPLE TO USE

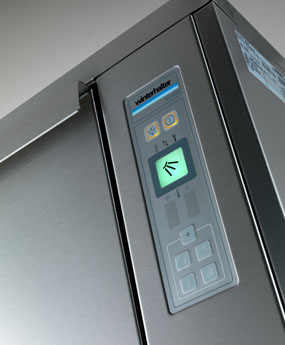

Start button with 1-button operation. Self-explanatory and colour-coded. Display of temperatures and fill levels. Operating the GS 630 is easy and safe.

HYGIENE SAFETY

Fourfold wash water filtration system. Monitoring of set temperatures. Automatic self-cleaning programme. And easy manual cleaning. The GS 630 ensures maximum hygiene safety.

Winterhalter GS 630 utensil washer

PRODUCT FEATURES

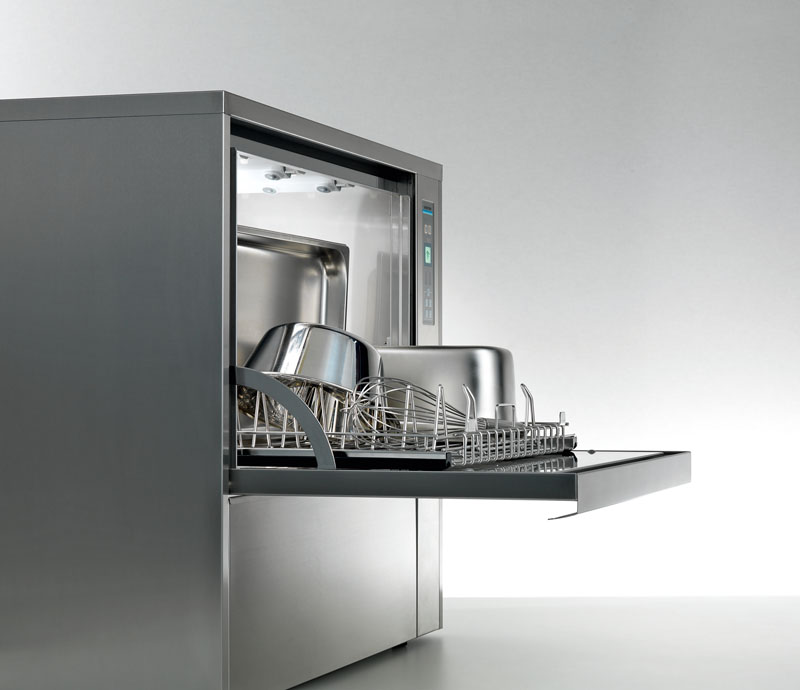

Height 820 mm. Width 870 mm. Depth 600 mm. With these dimensions, the GS 630 is the smallest utensil washer in the world. And there’s even a compact under-counter version. You can find additional technical data in the GS 630 flyer.

Easy, convenient and completely safe. This is what Winterhalter expects from the operation of a warewasher. In the case of the GS 630, this means self-explanatory and intuitive single-button operation with clear colour coding. That’s all it takes. When staff are changing regularly, this is an obvious advantage.

The cleaner the wash water, the better the wash result. That’s why the GS 630 comes with an efficient wash water filtration system. Large dirt particles are caught in the removable strainer. The Mediamat then filters out the finest particles, such as coffee grounds. A pump inlet filter protects the pump from mechanical damage. As a result, the wash water remains clean at all times.

At the end of a working day: The GS 630 has a guided self-cleaning programme, to ensure the machine works perfectly for many years. Cleaning of the interior of the machine begins at the touch of a button. The drain pump takes any residual water out of the machine and prevents deposits or odours.

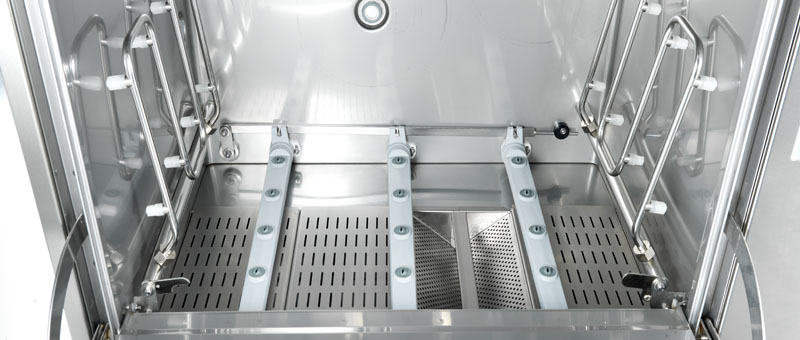

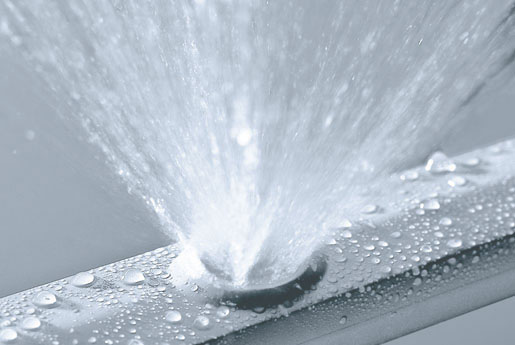

A question of technology: Winterhalter has developed a wash system in which the water hits the items being washed with maximum coverage. Six reversing wash systems make this possible. One at the top, one at the bottom. In conjunction with the integrated high-power wash jets, this system delivers a perfect wash result even on stubborn dirt.

Anyone who works with proteins and starch will know: it’s important to pre-wash with cold water to avoid baking the dirt onto the dishes. The GS 630 can therefore be equipped with a cold water pre-wash as an option. Clean, cold water releases the dirt before the actual wash cycle begins. This guarantees a hygienically clean wash result and reduces the work involved in manual pre-washing.

Ready for any eventuality: the GS 630 is available with temperature switching as an option. This allows the rinse temperature to be lowered quickly and easily. From 85 °C for washing utensils and dishes, to just 65 °C for glasses on their own.

Rinsing is crucial to achieve perfectly hygienic wash results. But only if the rinsing temperature is right. The GS 630 monitors itself: the Thermostopp does not allow the rinsing process to begin until the temperature in the boiler has reached 85 °C.

Secure water ingress protection: the GS 630 meets the specifications for IP protection class under IPX5 with its standard rear cover. At the same time, the cover ensures that the outside of the machine can be cleaned safely.

A powerful duo: in addition to the rinse aid dosing device that is fitted as standard, the GS 630 is available with an integrated detergent dosing device as an option. The advantage: the detergent dosing device is built into the machine to save space and guarantees perfect wash results thanks to precise dosing of the washing chemicals.

It’s always best to err on the side of caution: the GS 630 is also available with an acoustic warning signal. If the detergent or rinse aid containers are empty, an acoustic signal brings this to the attention of personnel.

Always keep an eye on what’s important: the tank and boiler temperatures are displayed on the operating panel of the GS 630. As a result, the values can be monitored quickly and easily. For maximum safety as far as hygiene is concerned.

With the GS 630, you have everything under control. Including foam formation, which can be caused by proteins in the machine and has a negative impact on the wash result. With the optional dosing device, special defoaming components are added to the wash water. Entirely automatically. For a consistently good wash result.

Instead of integrating your GS 630 into the counter, would you prefer a free-standing unit at just the right working height? Would you rather keep wash racks or detergent and rinse aid containers tidied away under the machine? We’ve considered these options and developed special plinths for the GS 630 tailored to these requirements. Open and enclosed, in various heights, with and without a drawer. For ergonomic working and space-saving storage.

Compact, flexible, powerful. The successful concept of the GS 630 is simple and has convinced our customers worldwide for many years. We are very proud of this!"

Manuel Kreibich, Product Manager International
